Varun MKINSUAS Naval Shipborne Unmanned Aerial System
Across environments
Navigation, undersea warfare, maritime surveillance and land mobility. Explore the systems we design and build.

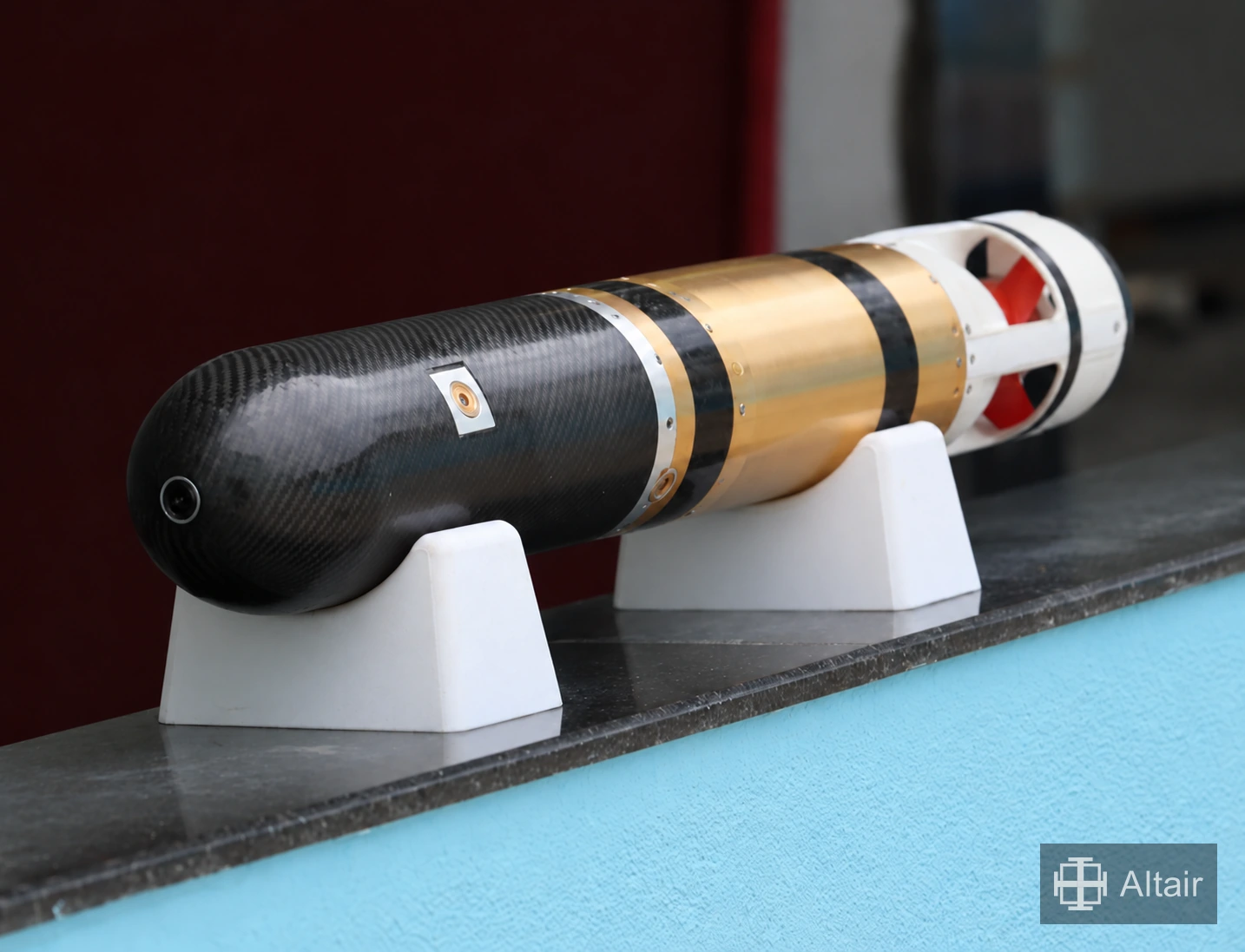

ASW training target
EMATT
An expendable, battery-powered underwater target that simulates submarine sound and movement for anti-submarine warfare training. NATO A-size compatibility requires no platform modification.
Maximum speed
8 kn
Maximum depth
180 m
Endurance
6 h
Weight
<10 kg
Technical details +
914 × 124 mm body; 18–24 nmi mission endurance.
Passive acoustics: 1–3 kHz with variable power. Echo mode: 3–13.5 kHz, ranging error under 150 yd.
Programmable speed, depth, heading and acoustic profile.
Mk1 ship-launched; Mk2 air-launched with MAD up to 25 m.
Operates up to Sea State 4; sinks automatically after the mission.

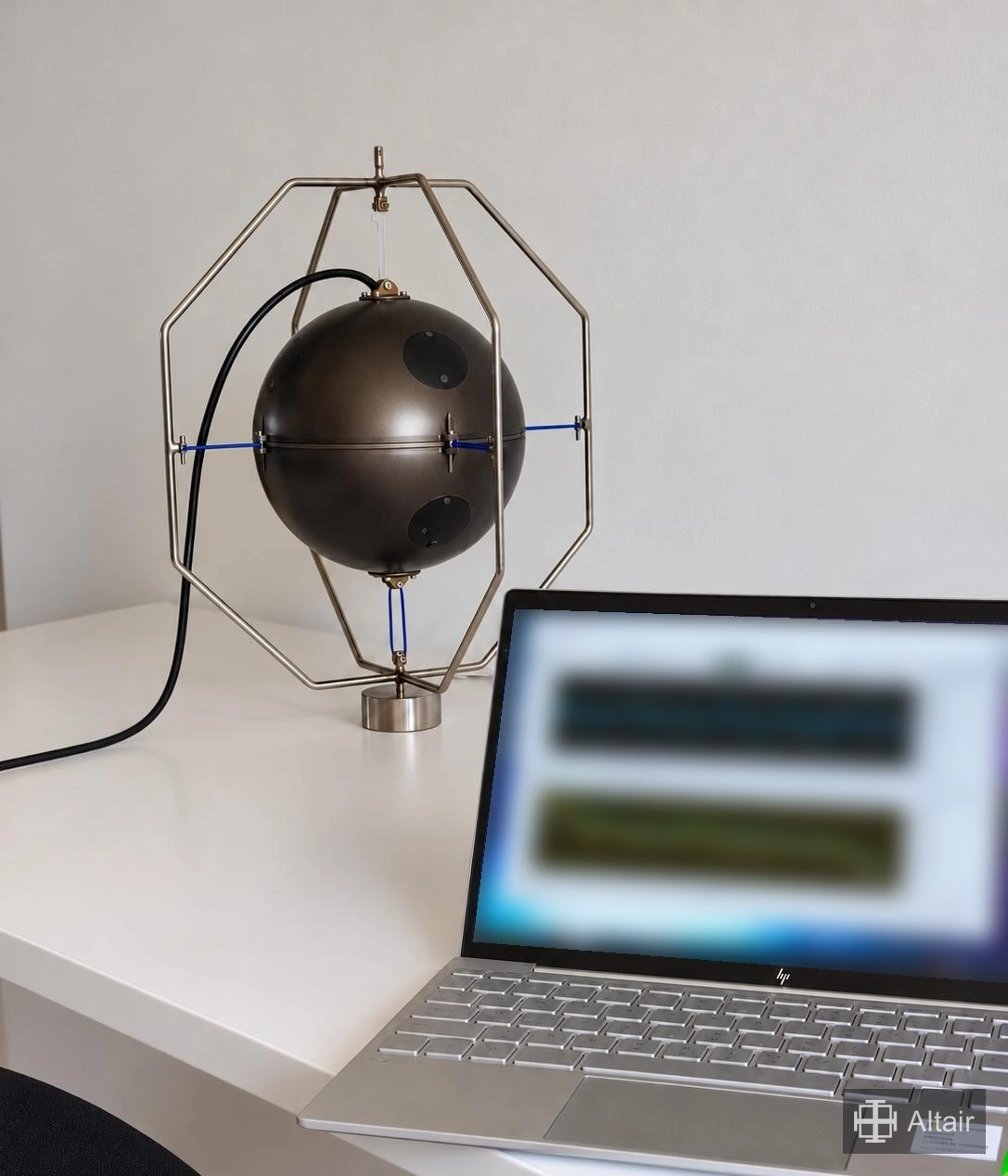

Detects ultra-low-frequency underwater sources and determines their bearing from a single unit. Networked nodes triangulate the source for passive surveillance, localisation and tracking.
Frequency range
250–2000 Hz
Bearing accuracy
±5°
Tested depth
300 m
Direction of arrival
1 unit
Technical details +
Bearing detection from a single unit, with no hydrophone array.
LOFAR ultra-low-frequency detection and multiple-target tracking.
Waterfall and bearing-plot displays with AI/ML anomaly detection.

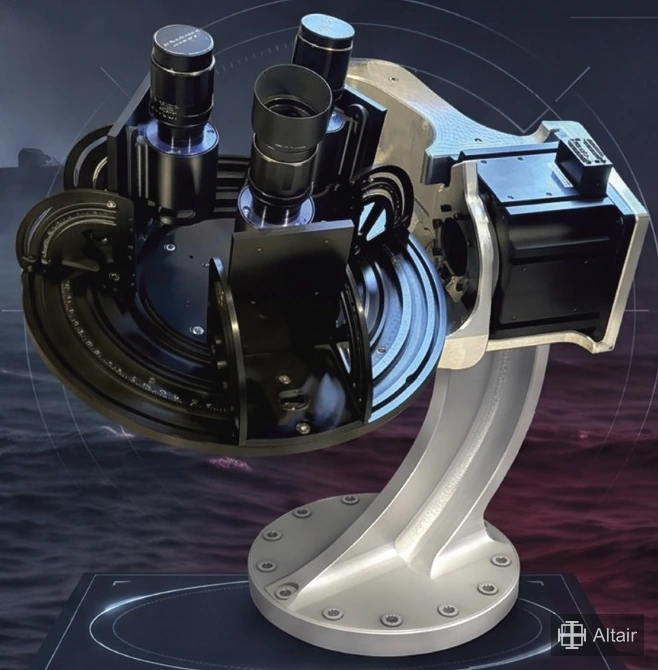

A celestial navigation aid for ships that fixes position and true-north heading from the stars by night and the Sun by day, with no GNSS to jam or spoof.

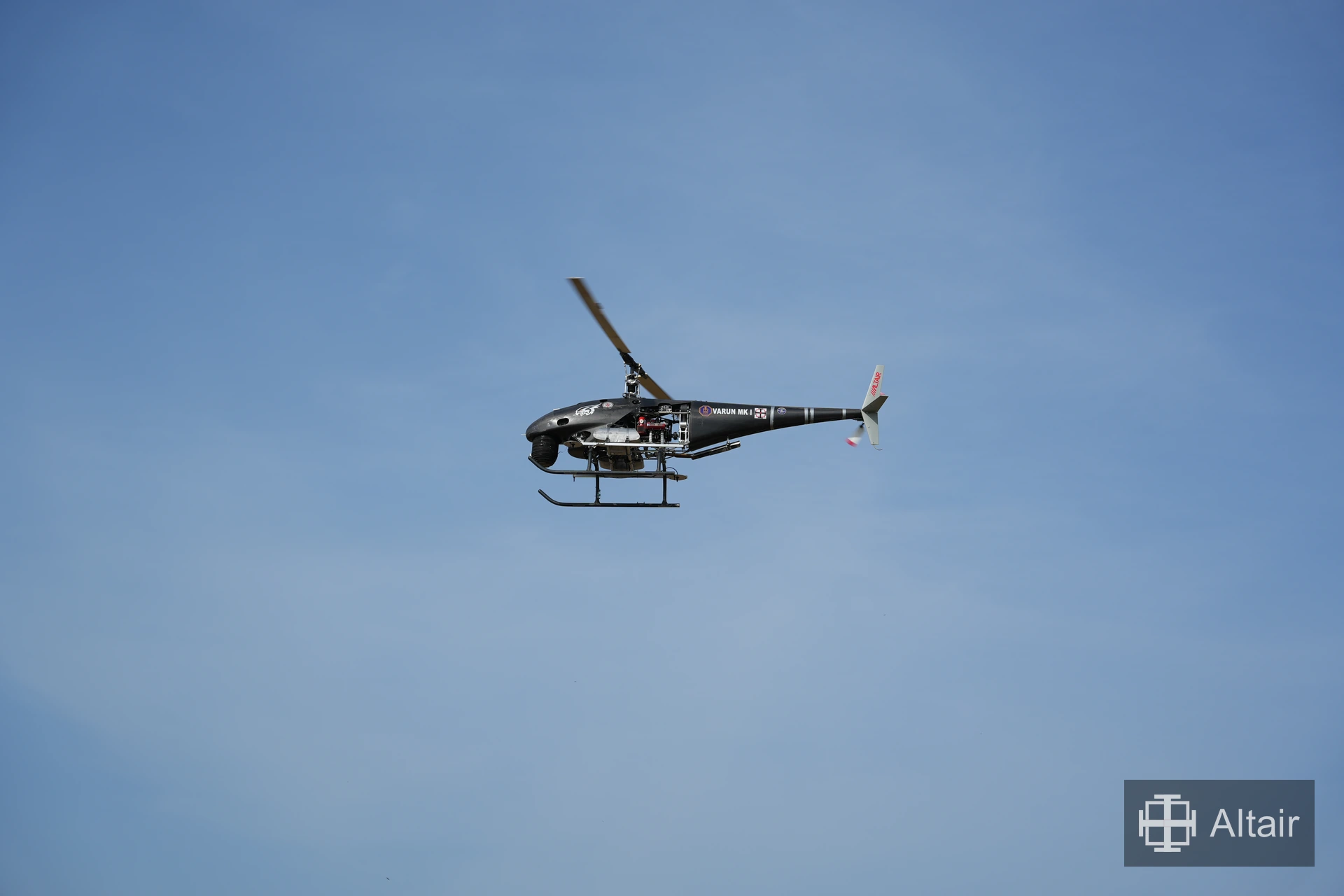

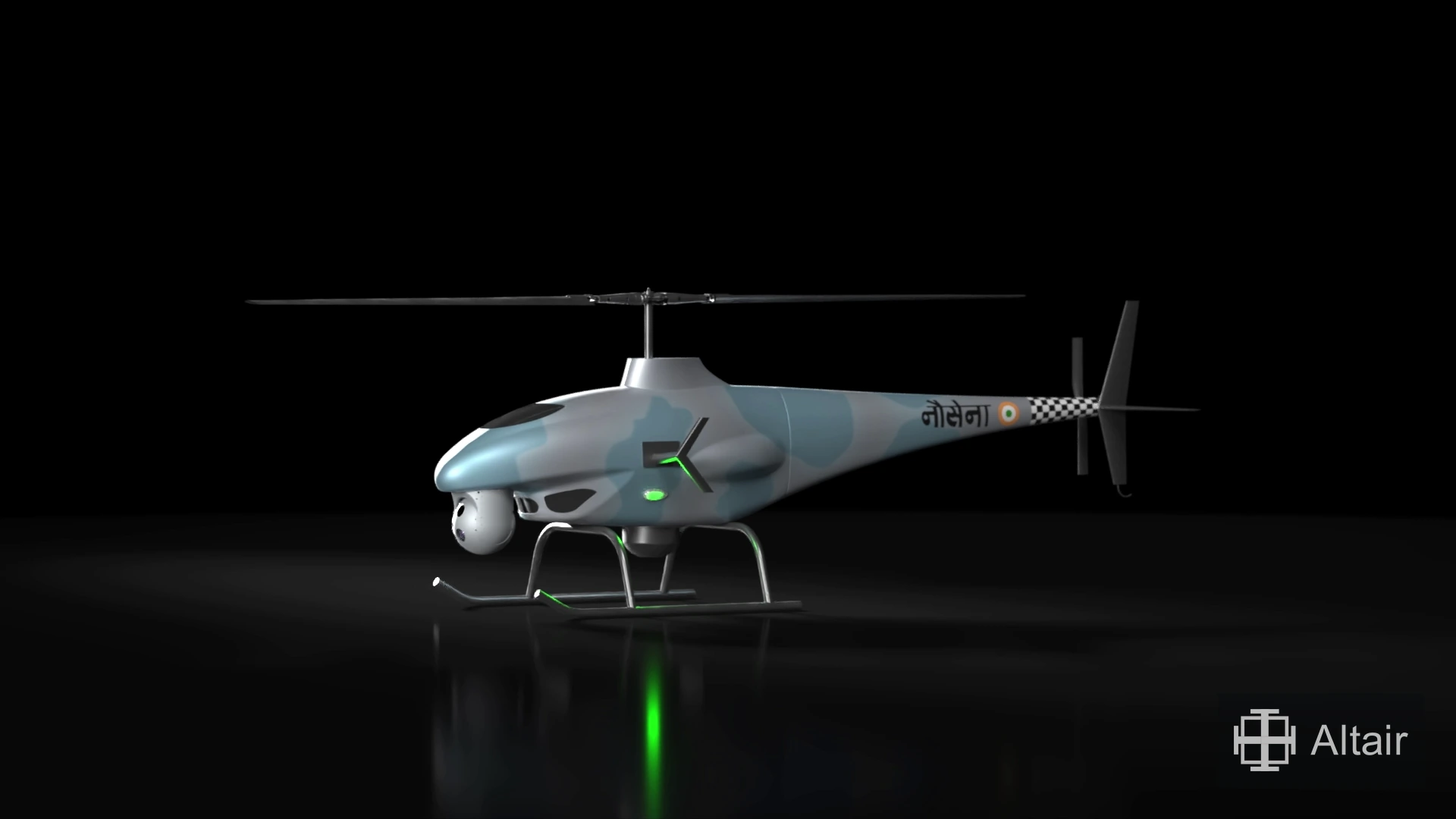

A ship-borne unmanned helicopter for maritime domain awareness and C4ISR. Designed to launch and recover from a ship’s flight deck in varying sea states.
Take-off weight
550 kg
Minimum payload
50 kg
Endurance
4 h
Radio line-of-sight
100 km
Technical details +
160 km/h maximum speed; 120 km/h cruise.
Current payloads: EO/IR, MPR, AIS, ADS-B and airband transceiver / voice RT.
160 HP piston engine, three-blade 6.4 m main rotor and redundant flight-critical systems.
5,000 ft ceiling; operating temperature −25 °C to +55 °C.

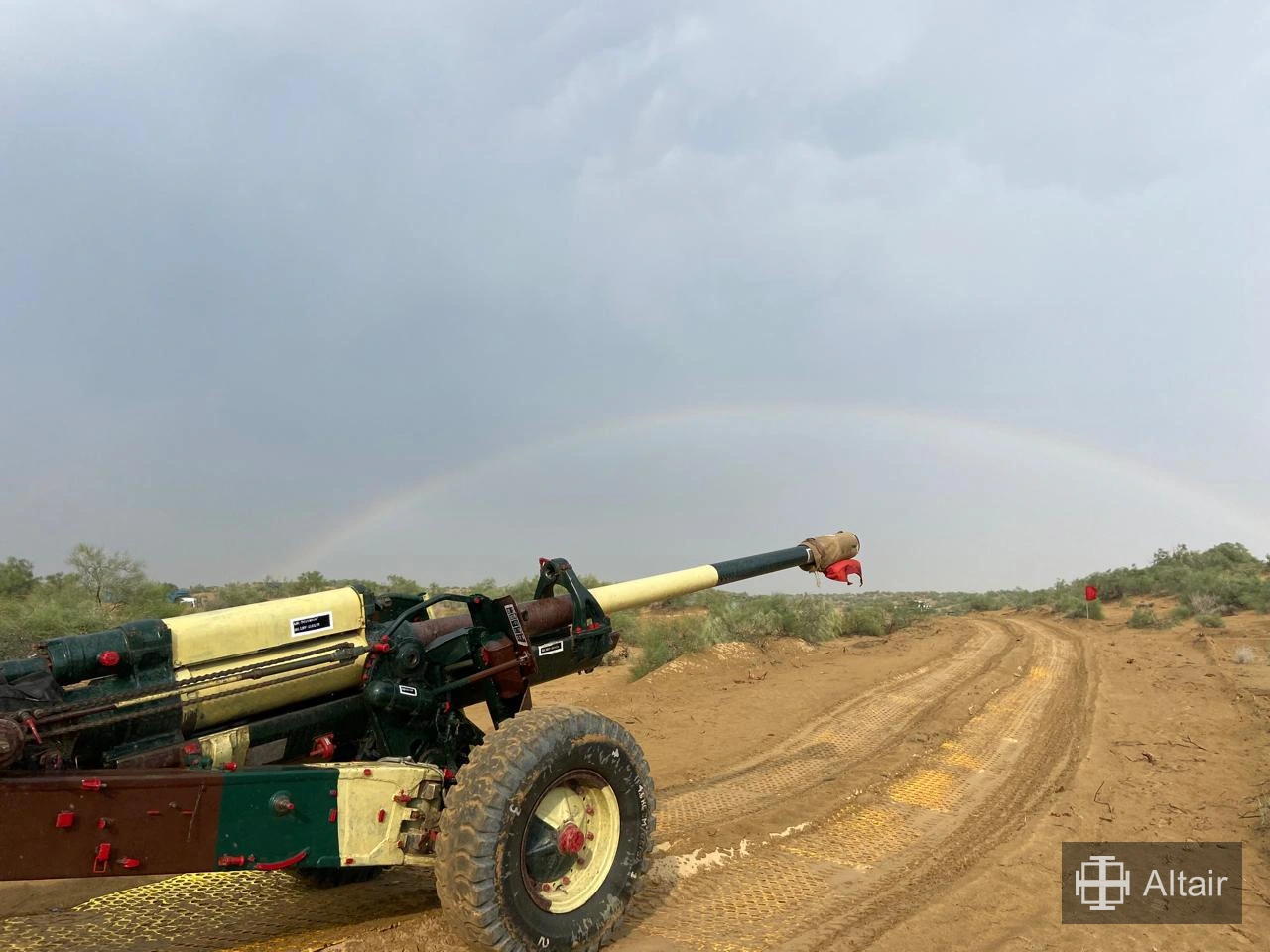

A modular honeycomb trackway made from lightweight, high-strength polymers. UATW stabilises desert and semi-desert ground for vehicles with pneumatic tyres, with interconnected rolls that accommodate bends and turns.
Load capacity
25 tons
Weight per 25 m roll
205 kg
Roll length
25 m
Minimum passes
10,000
Technical details +
Load capacity: 25 tons.
Weight: 205 kg per 25 m roll.
Structure: honeycomb panels made from lightweight, high-strength polymers.
Roll dimensions (L × W): 25,000 × 1,000 mm. The system comprises two 1 m-wide Class 24 tracks.
Tested on 4×2, 4×4, 6×6 and 8×8 vehicles.
Tested to Military Load Classification (MLC) 24 baseline, with capability for vehicle loads up to MLC 30+ in desert and semi-desert conditions.
Operating temperature: −50 °C to +60 °C.
Service life: minimum 10,000 passes / 8 years.
Transport: approximately 10+ rolls in one level in a standard 4×4 truck with a 2.0 m × 4.5 m cargo bay.
Interconnected rolls create a virtually indefinite road length. Modular construction accommodates bends and turns; deployment requires no special troop training.
Applications: assault trackways, temporary roadways, approach roads, gap crossings, beach landings and flooring systems. Additional accessories enable use as a helicopter landing mat.
Fully localised — 100% Made in India. Intellectual property: Altair Infrasec Private Limited.

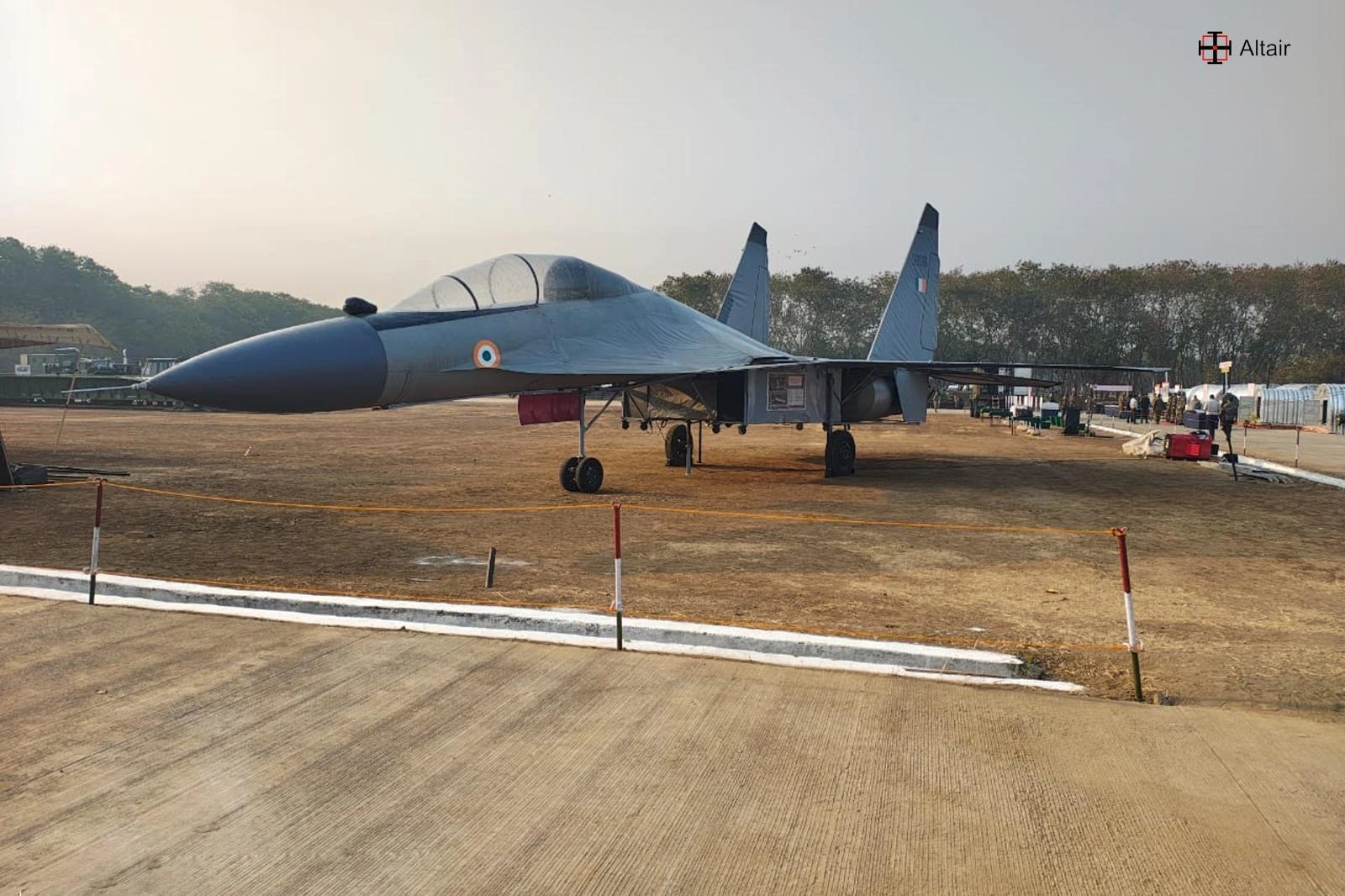

A hybrid inflatable decoy that mimics the visual and infrared signatures of the Su-30 MKI. A steel structure and PVC tensile fabric combine in a blower-supplied system assembled by a four-person crew.
Design, science and control engineering. Brought together through in-house technology development.
Independently operated. Based in Pune, India.
Calibrated Boldness® Progress in Silence Growth in Stillness®
Design & engineering
Underwater vehicles, aerodynamics, inflatables, combustion engineering and flight-test engineering.
Sensing & electronics
Hydro acoustics, radar design, embedded software, photonics, optics and IC design.
Science & materials
Material sciences, polymer chemistry, transparent ceramics, piezo design and cryogenics.
Data & navigation
Signal processing, control engineering, geospatial science and positioning, navigation and timing.
A wider perspective
Water, land and air. From underwater sensing and ship navigation to modular trackways, aircraft decoys and unmanned aviation, our engineering works across environments.
